TD111D
Cordless Impact Driver



TD111D
Cordless Impact Driver

12V max Cordless Impact Driver 135 N·m

  

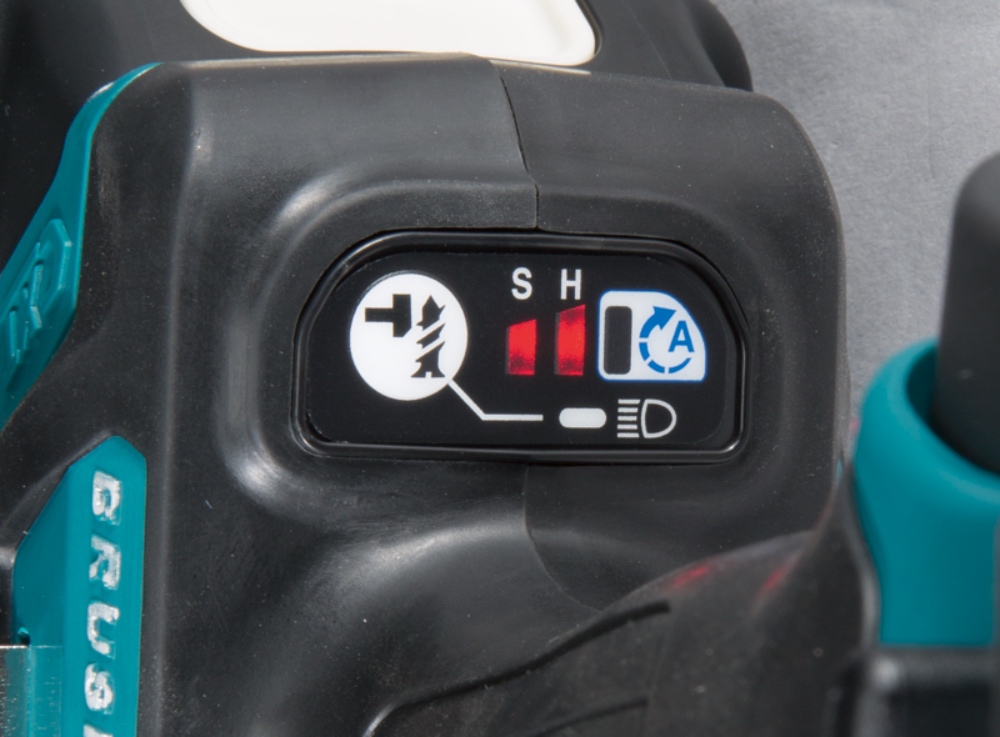

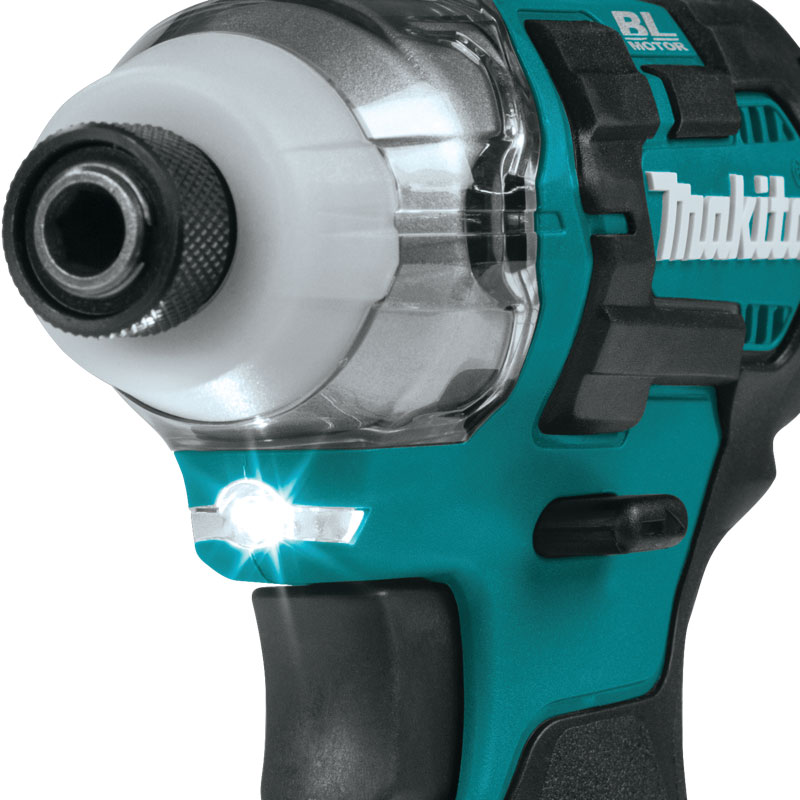

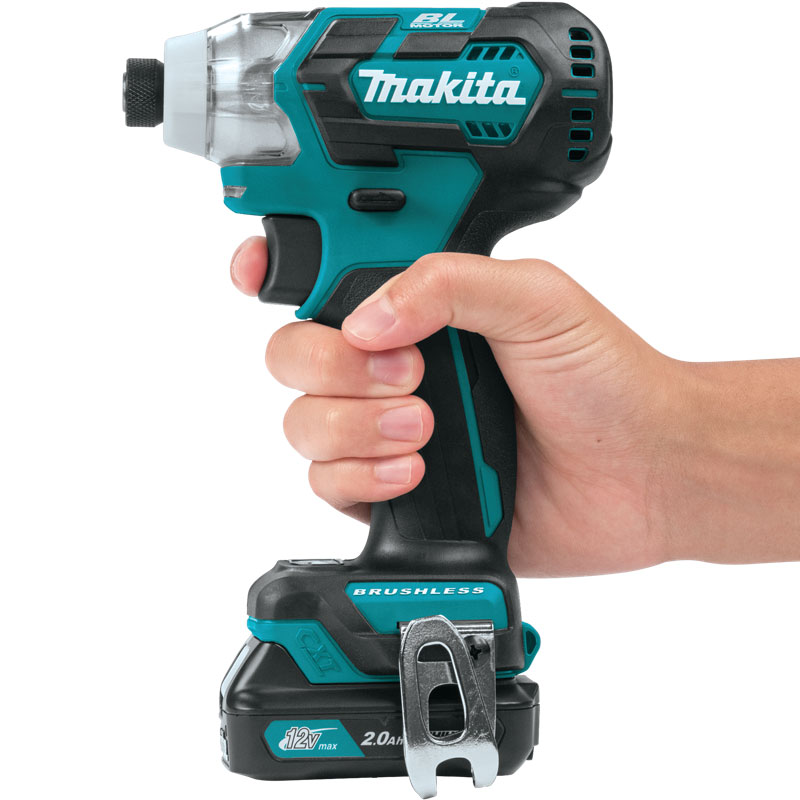

๐ Ultra compact and slim design at only 135 mm (5-5/16") long ๐ Power-increased motor delivers 135 N·m (1,200 in.lbs.) of Max Torque in an ultra compact size ๐ 3-Mode operation: A-mode / Hard mode / Soft mode for multiple applications ๐ A-Mode feature helps eliminate "screw cam-out" and "cross threading" by driving at low speed until tightening begins ๐ 2-Speed power selection switch (0-3,000 / 1,300 RPM & 0-3,900 / 1,600 IPM) provides the user with precise fastening control for a wide range of applications ๐ BL motor is electronically controlled to optimize battery energy use for up to 50% longer run time per charge ๐ Best possible ergonomic handle for screwdriving applications ๐ Multi-contact terminals ensure stable contact with battery even under extreme vibration ๐Built-in LED light ๐ Convenient 6.35 mm (1/4") hex chuck for quick bit changes ๐ Battery protection circuit protects against overloading, over-discharging and over-heating

Standard Equipments : Phillips bit, Belt clip


Technical specifications

Capacity Machine screw M4 - M8
Capacity Standard bolt M5 - M14
Capacity High strength bolt M5 - M12
Capacity : Steel 6 mm
No Load Speed 0 - 3,000 / 0 - 1,300 minˉ¹
Impacts Per Minute (IPM) 0 - 3,900 / 0 - 1,600
Max fastening torque 135 N·m
Dimensions (L x W x H) 135 x 66 x 210 mm
Net weight 0.97 - 1.1 kg
Variable Speed
Brake
Reversing
Electronic 2-Speed
Built-in-Job Light
