HP333D
Cordless Hammer Driver Drill

HP333D
Cordless Hammer Driver Drill

12Vmax Cordless Hammer Driver Drill 10 mm (3/8") 34 N·m

  
Variable Speed
Brake
Reversing
Mechanical 2-Speed
Torque Setting 20
Built-in-Job Light

Features

  • Compact and Ergonomic Design at Only 193 mm Long
  • Ball bearing reduces bit wobbling
  • Slide style battery and improved ergonomic grip
  • Variable 2-speed (0-450 & 0-1,700 RPM) for a wide range of drilling, fastening and hammer drilling applications
  • Increased motor power for higher application speed and max tightening torque
  • 0-25,500 IPM for fast hammer drilling in masonry materials
  • Lightweight for reduced operator fatigue
  • Best possible ergonomic handle for drilling applications
  • Ergonomically designed handle with soft grip provides increased comfort

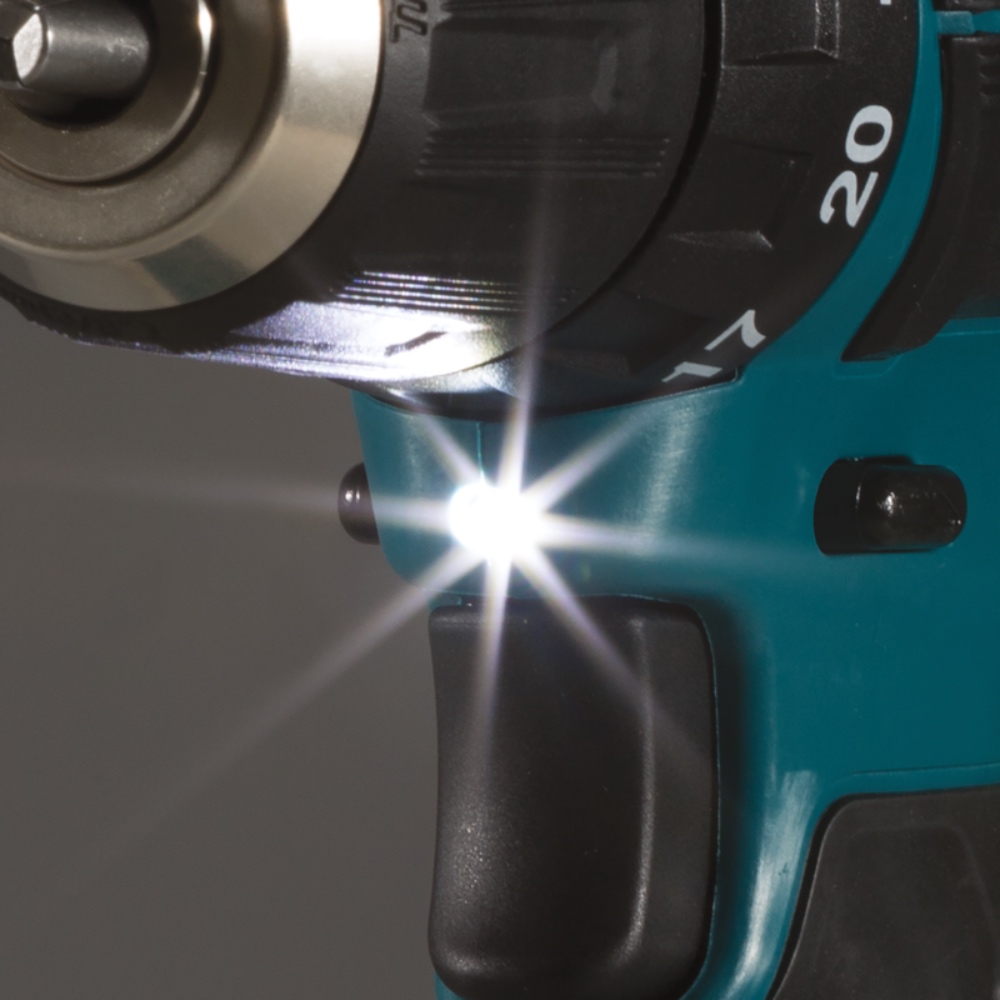

  • Built-in LED light with pre-glow and afterglow functions illuminates the work area
  • 12Vmax slide battery design enables the tool to stand on its own for user convenience
  • Multi-contact terminals ensure stable contact with battery even under extreme vibration
  • Part of the expanding 12Vmax CXT series, combining performance with superior ergonomics in a compact size
  • Battery protection circuit protects against overloading, over-discharging and over-heating
  • Convenient 10mm keyless chuck for quick bit changes

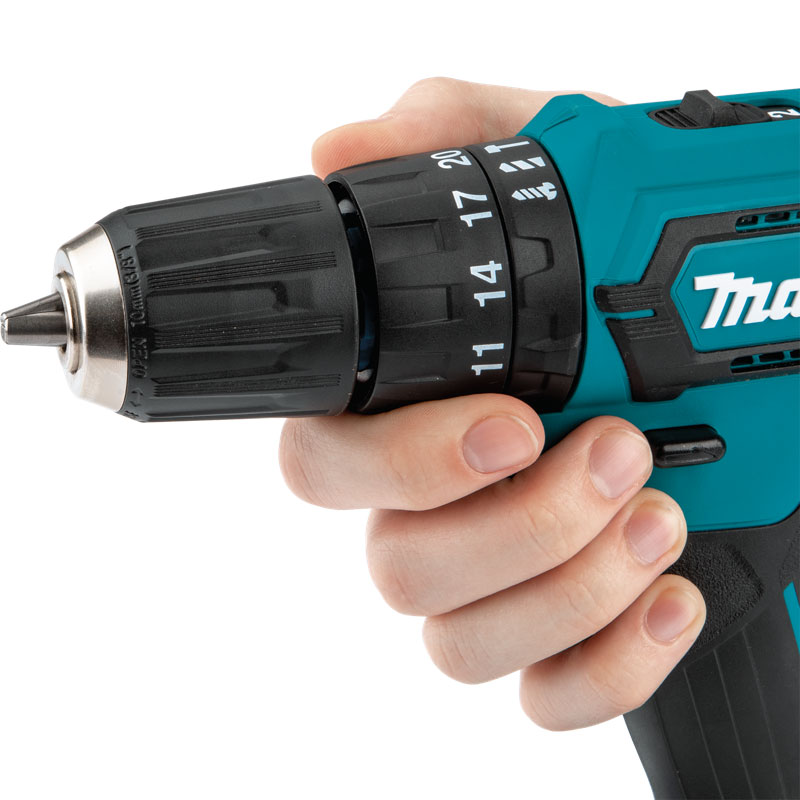

  • 20 clutch settings and drill mode for added fastening control
  • Reversing switch is conveniently located

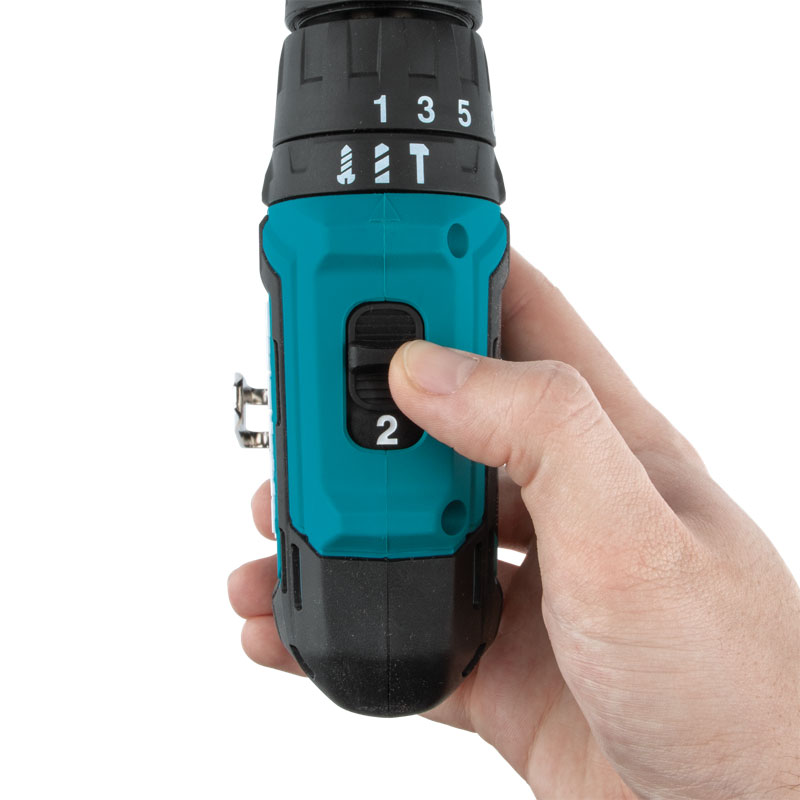

  • Mechanical 2-speed gearing; High speed mode for speedy drilling in light duty applications; Low speed mode for heavy duty applications requiring high torque
  • Electric brake for maximum productivity and increased operator safety.

Standard Equipments : Phillips bit, Belt clip


Domestic Sales Model


Technical specifications

Capacity : Steel 10 mm
Capacity : Wood 21 mm
Capacity : Masonry 8 mm
Chuck Capacity 0.8 - 10 mm
Impacts Per Minute 0 - 25,500 / 6,750 minˉ¹
No Load Speed : High/Low 0 - 1,700 / 0 - 450 minˉ¹
Max Fastening Torque : High/Low 30 / 14 N·m
Max Lock Torque 28 N·m
Dimensions (L x W x H) 193 x 66 x 212 mm
Net weight 1.1 - 1.3 kg
