Cordless Rebar Tying Tool

Cordless Rebar Tying Tool

18V Cordless Rebar Tying Tool

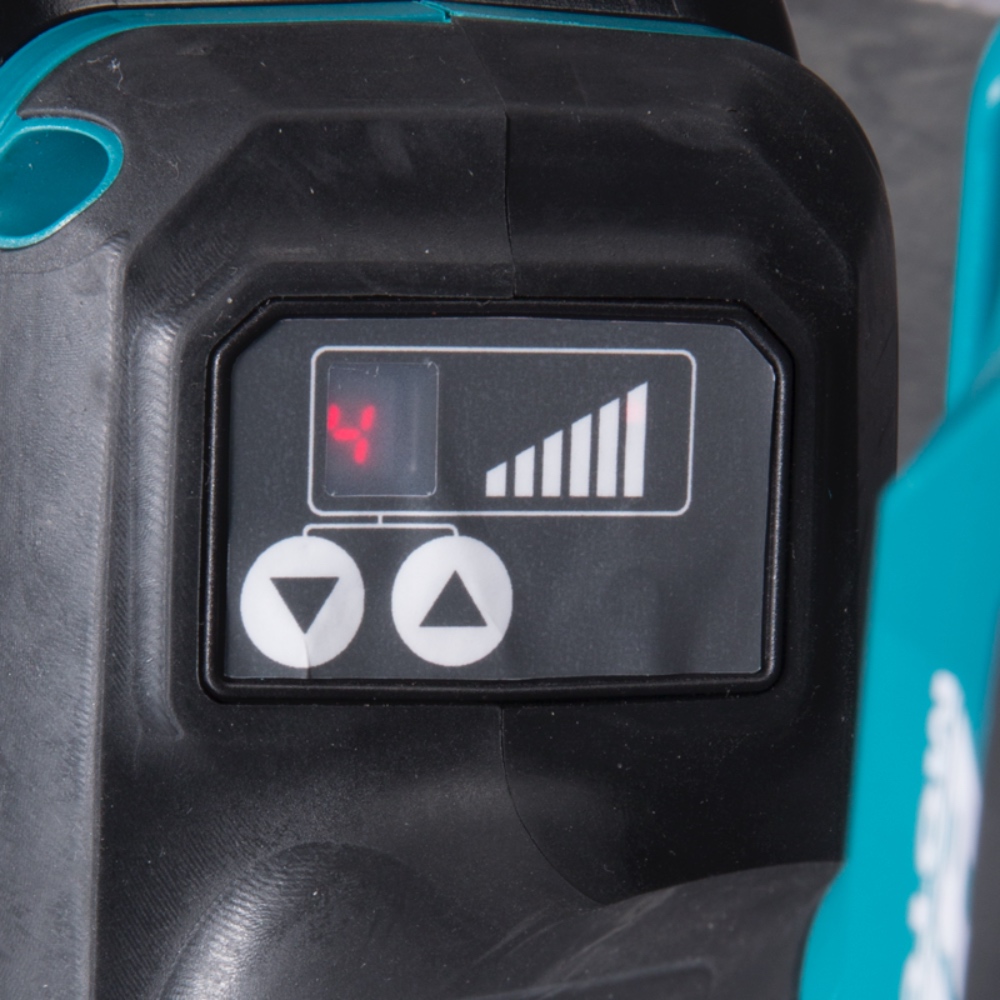

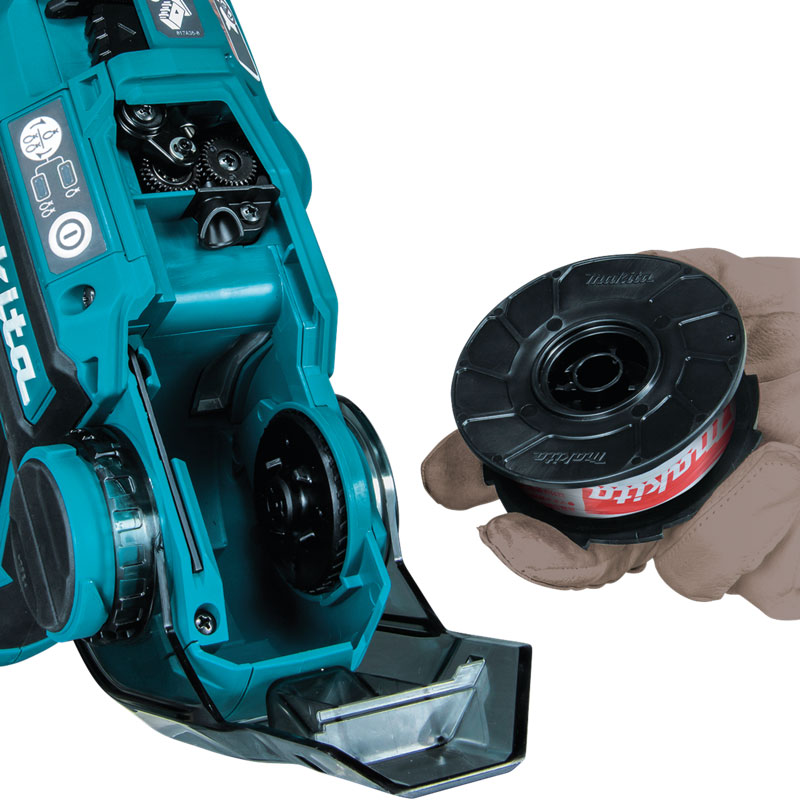

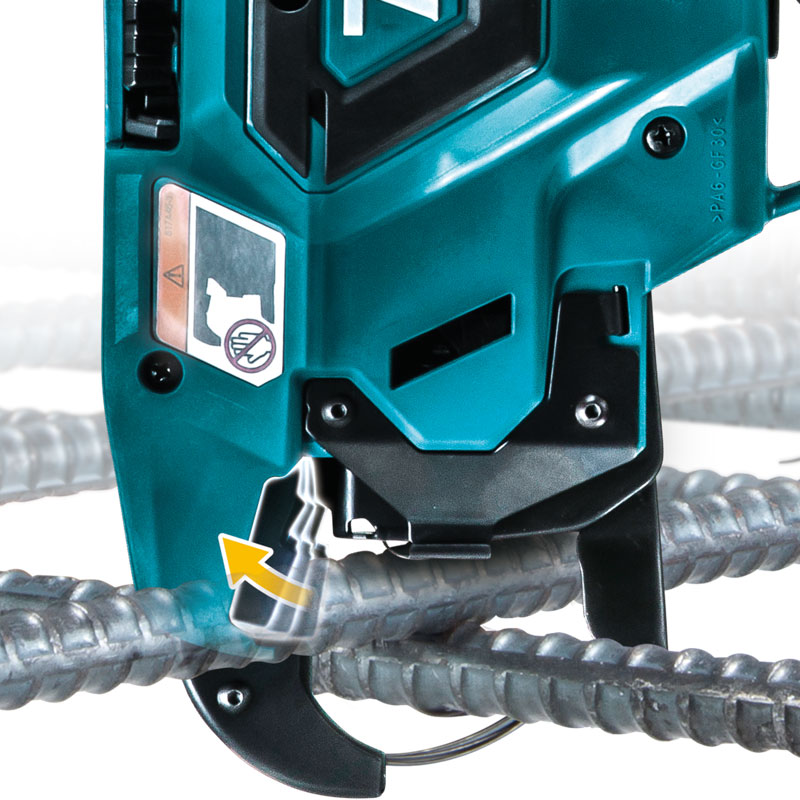

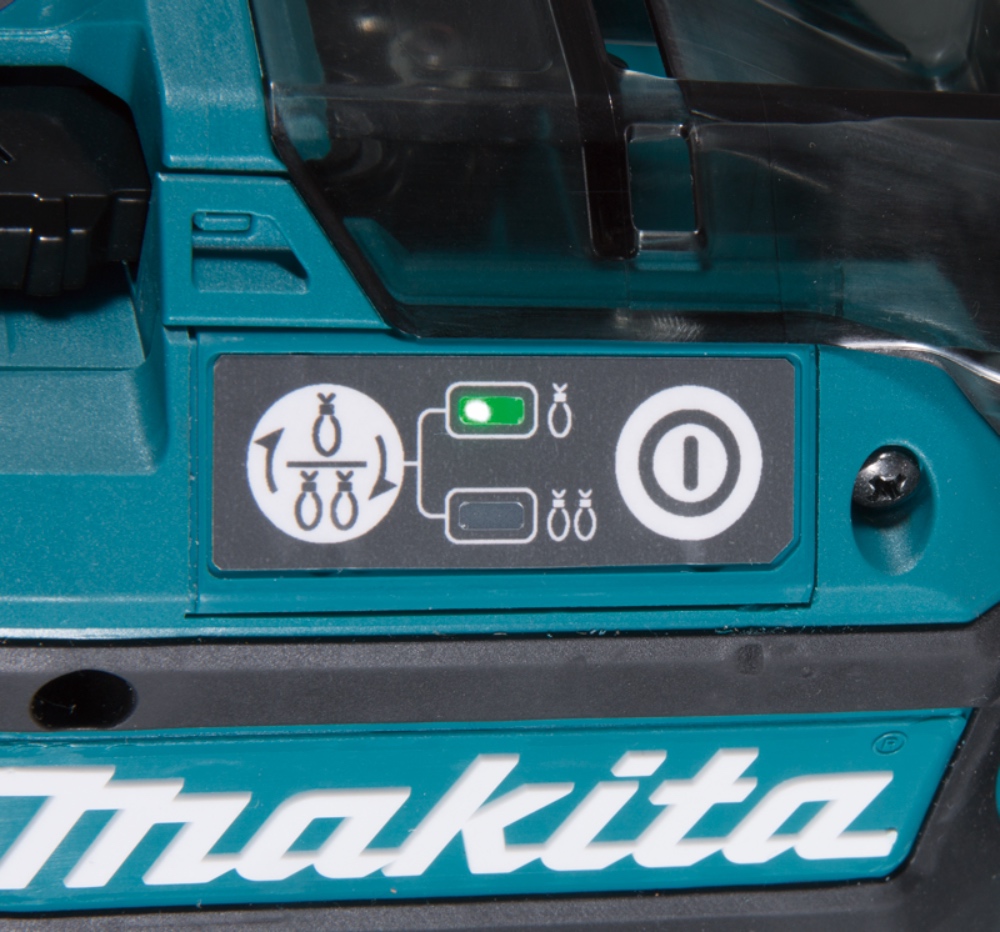

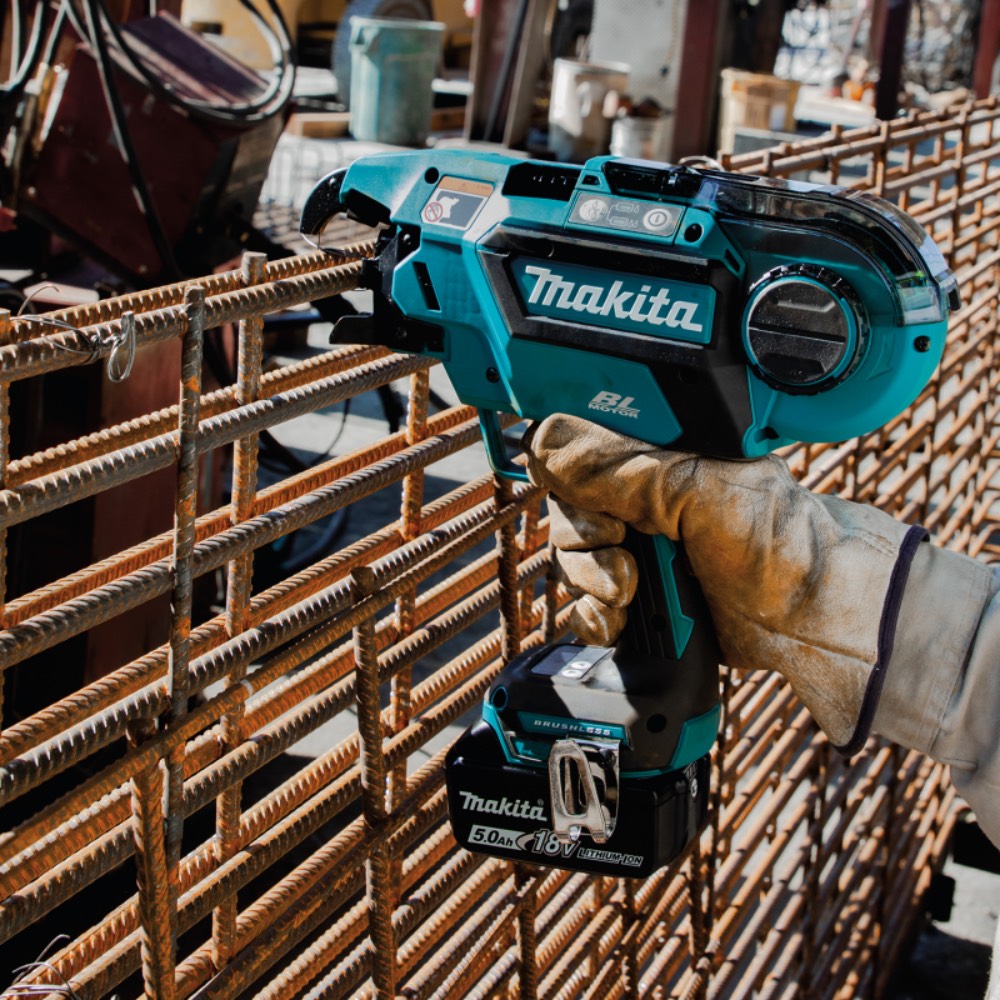

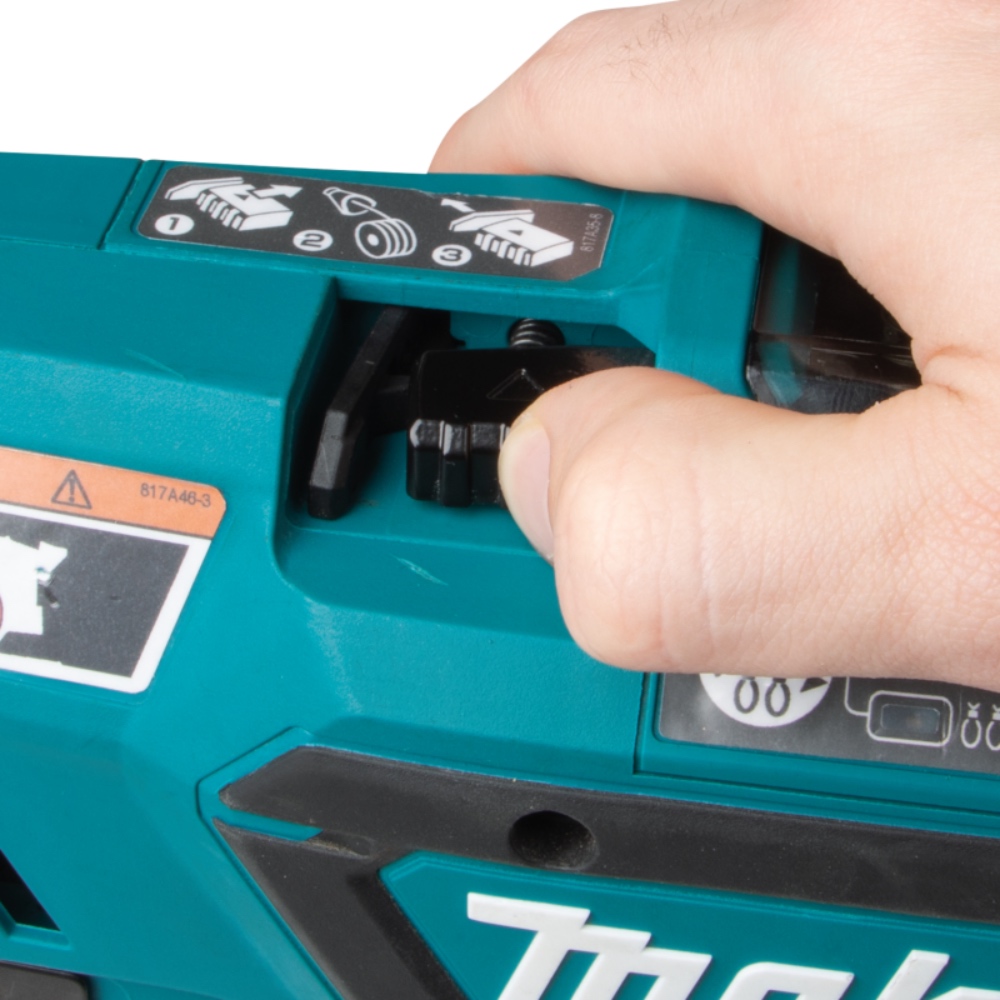

๐ Tying Rebars Automatically ๐ Tying rebars can be done automatically in a various range of applications such as building concrete foundations ๐ Operable by only one hand, allowing the other hand to be free to adjust the position of rebar ๐ Continuous actuation mode for efficient continuous tying ๐ Users can tie rebars by only pulling contact arm against rebars if they continuously hold the trigger ๐ Users can also tie rebars by pulling the trigger as single actuation mode ๐ According to the condition of tying material, tying strength can be adjusted in 6 stages ๐ Extreme Protection Technology (XPT) is engineered for improved dust and water resistance for operation in harsh conditions ๐ BL motor eliminates carbon brushes, enabling the BL motor to run cooler and more efficiently for longer life ๐ φ0.8 mm Annealed tie wire dedicated for DTR180 ๐ Tie wire reel can be replaced simply by opening Reel cover ๐ On-tool storage of hex wrench: Hex wrench is supplied for maintenance of tie wire path ๐ Ergonomically designed handle with sure grip provides increased comfort on the job

Standard Equipments : Hex wrench, Hook

Technical specifications

Tie wire Dia. 0.8 mm
Applicable rebars D10 x D10 - [D13 x 2] x [D13 x 2]
Dimensions (L x W x H) 304 x 93 x 318 mm
Net weight 2.3 - 2.6 kg
Torque Setting 6
