DUC101

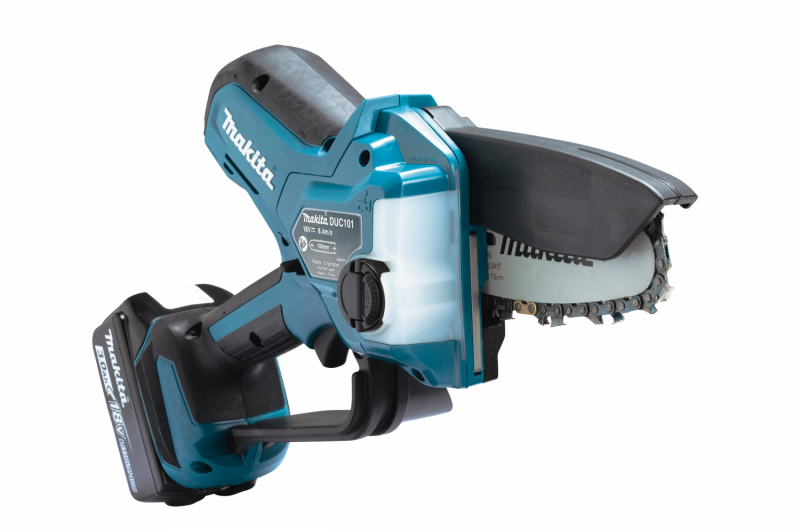

Cordless Pruning Saw

DUC101
Cordless Pruning Saw

18V Cordless Pruning Saw 100 mm (4")

  

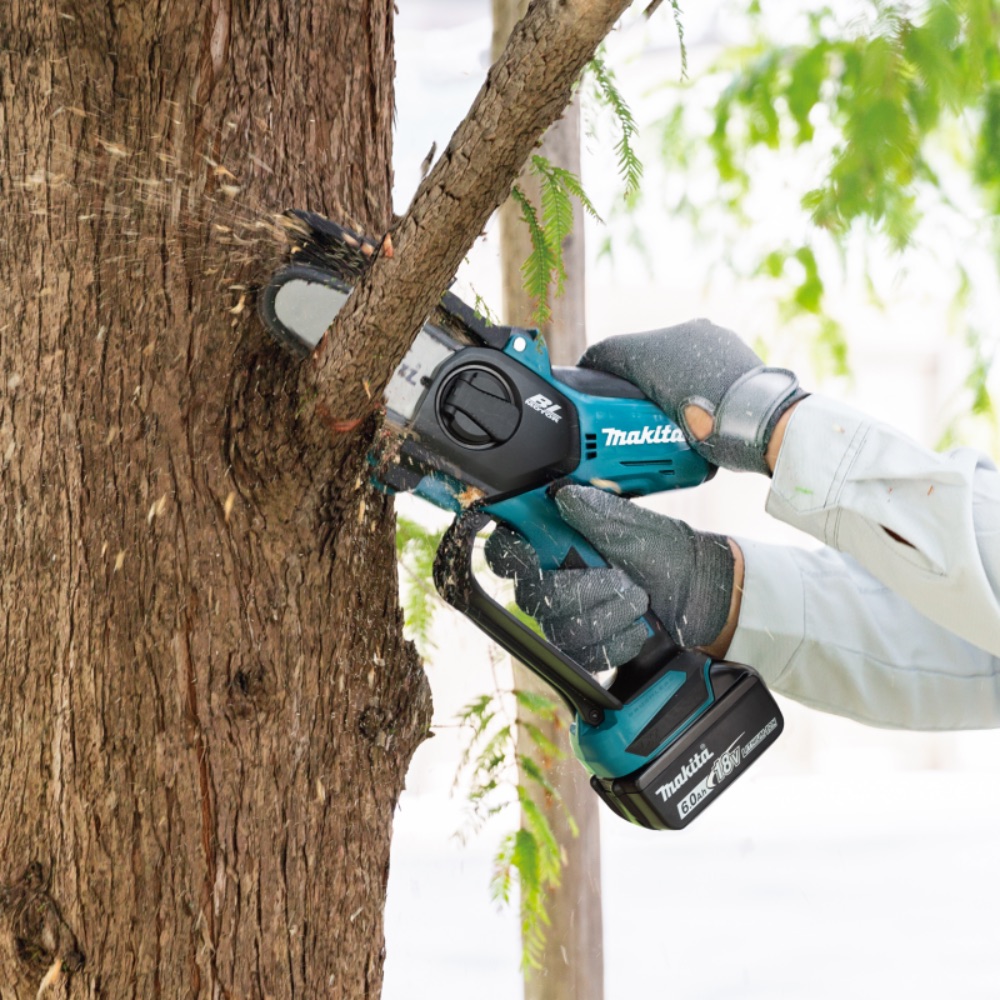

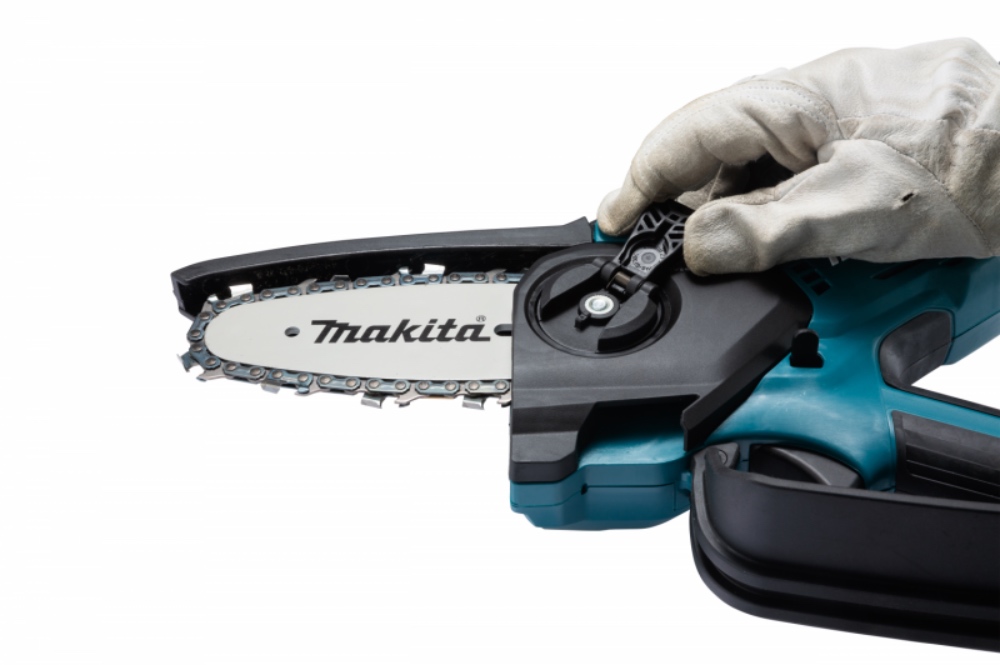

๐ Easy-to-use, lightweight and compact product enables easy pruning of garden or orchard trees ๐ New tool-less change and tension adjustment of saw chain • Simply loosen and re-tighten the lever to automatically adjust the tension of saw chain • This easy-to-operate large lever is designed to be pulled up and turned easily ๐ Automatic chain lubrication minimizes the chance that saw chain will stall due to forgetting to supply chain oil ๐ Compact and lightweight BL motor for higher efficiency in operation ๐ Lock-off lever accessible from both sides ๐ Rear hand guard ๐ Movable guard covers the upper side of guide bar, and opens gradually wider as saw chain cuts deeper in branch ๐ Saw chain: 80TXL 100mm ๐ Chain oil view window allows operator to easily check oil level ๐ Soft grip handle for non-skid operation ๐ Electric brake for maximum productivity ๐ Extreme Protection Technology (XPT) is engineered for improved dust and water resistance for operation in harsh conditions

Standard Equipments : Saw chain, Guide bar, Guide bar cover, Round file, Chain oil


Technical specifications

Guide bar length 100 mm
Chain pitch 0.325"
Chain pitch 1.1
Max chain speed 8.0 m/s
Cutting work amount 210 [Ø 50 mm]
Chain oil tank volume 55 mL
Dimensions (L x W x H) 357 x 90 x 232 mm
Net weight 1.6-2.0 kg
Brake
Automatic Oiling
