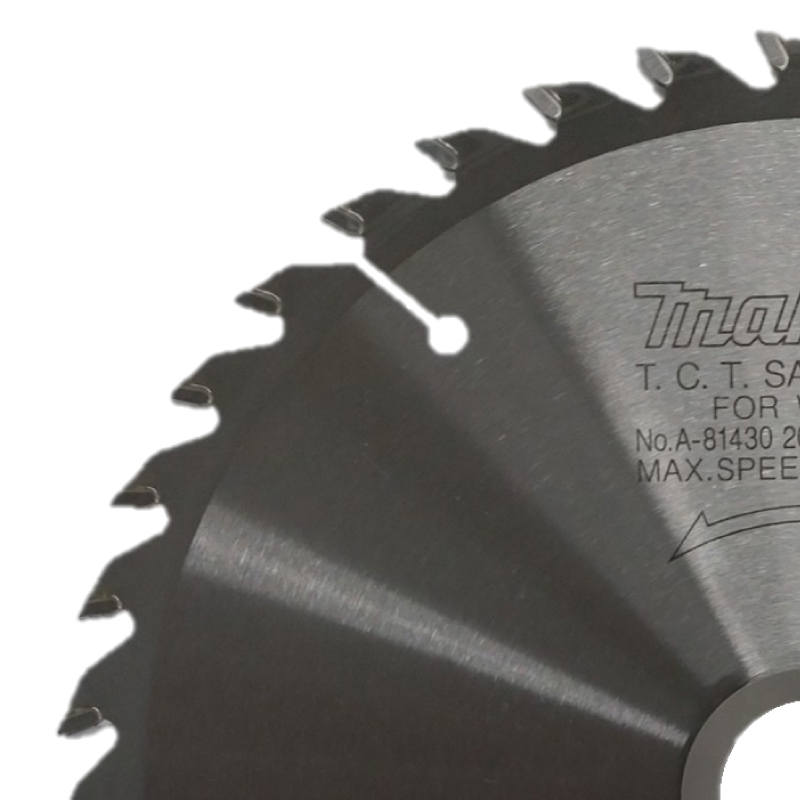

Standard circular saw blades. The different toothing styles, tooth densities and blade dimensions, can either make clean visible cut marks or fast cut rough edges can be achieved. The wide range of circular saw blades allows the user to select the right blade for each job; correct blade selection ensures that the job is completed efficiently and gives the blade a longer lifespan.
Technical specifications
| Part No. | Work material | Outer dia.mm | Hole dia.mm | Kerf mm | Plate mm | Rake | No. teeth | Tooth shape | Sales pkg q'ty |
|---|---|---|---|---|---|---|---|---|---|
| A-81365 | Wood | 136 | 20 | 1.5 | 1 | 20 | 16T | ATB | 1 |
| A-81402 | Wood | 180 | 20 | 2.2 | 1.4 | 20 | 24T | ATAF | 1 |
| A-81418 | Wood | 180 | 20 | 2.2 | 1.4 | 20 | 40T | ATAF | 1 |
| A-81468 | Wood | 235 | 25.4 | 2.6 | 1.8 | 25 | 40T | ATAF | 1 |
| A-81913 | Wood | 180 | 20 | 2.2 | 1.4 | 20 | 30T | ATAF | 1 |
| A-81991 | Wood | 235 | 25.4 | 2.6 | 1.8 | 25 | 30T | ATB | 1 |
| A-82688 | Wood | 160 | 20 | 2 | 1.4 | 15 | 60T | ATAF | 1 |
| A-82694 | Wood | 180 | 20 | 2 | 1.4 | 15 | 60T | ATAF | 1 |
| A-82719 | Wood | 235 | 25.4 | 2.4 | 1.5 | 20 | 60T | ATAF | 1 |
| B-14607 | Wood | 85 | 15 | 1 | 0.7 | 10 | 20T | ATB | 1 |
| D-50491 | Wood | 165 | 20 | 2 | 1.2 | 12 | 24T | ATB | 1 |
| D-50500 | Wood | 165 | 20 | 2 | 1.2 | 12 | 40T | ATB | 1 |
| D-50522 | Wood | 185 | 25.4 | 2.2 | 1.4 | 15 | 24T | ATB | 1 |
| D-50538 | Wood | 185 | 25.4 | 2.2 | 1.4 | 14 | 40T | ATB | 1 |
| D-62474 | Wood/MDF | 165 | 20 | 2.2 | 1.4 | -5 | 52T | TCG | 1 |
| D-61466 | Wood/MDF | 185 | 20 | 2.2 | 1.4 | -5 | 60T | TCG | 1 |
| B-10584 | Wood | 260 | 25.4 | 2.3 | 1.6 | 20 | 24T | ATB | 1 |
| 792118-8 | Wood | 415 | 25 | 2.6 | 1.8 | 20 | 60T | ATAF | 1 |
