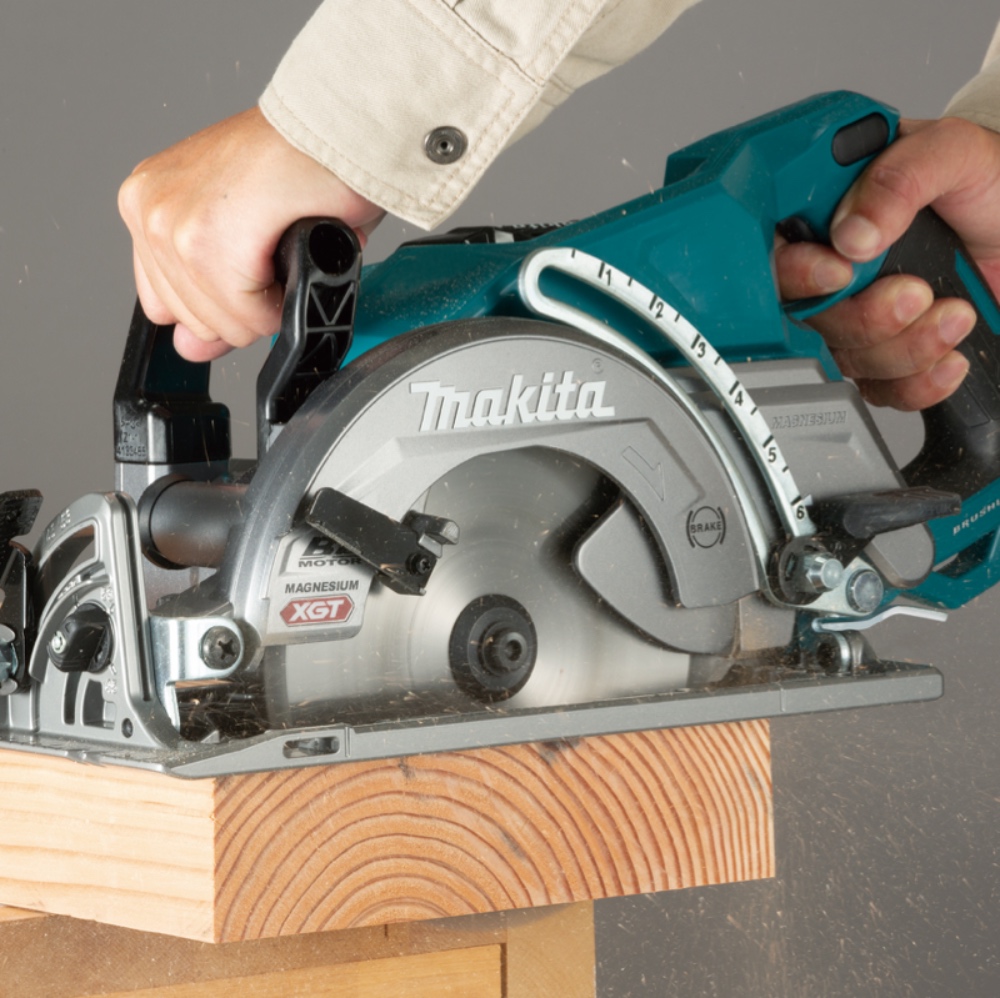

RS001G
Cordless Rear Handle Saw
40V Max 185 mm (7-1/4") Magnesium Rear Handle Saw
๐ High power 40Vmax XGT Li-Ion battery and an optimum BL motor enable higher cutting efficiency and more lightweight design ๐ Large cutting capacity (65 mm at 90°) and bevel capacity (90° - 53°) with a positive stop at 22.5° and 45° ๐ Cuts 3X material (63.5 mm or 2-1/2") in a single pass with a large 65 mm (2-9/16") cutting capacity at 90° ๐ Automatic torque Drive Technology (ADT) adjusts cutting speed and torque during cut for optimum performance ๐ Die-cast magnesium base and blade guard along with a die-cast aluminum blade cover and motor housing provide a lightweight, durable design ๐ Soft start minimizes start-up shock ๐ Lock-off (2 stage) safety switch for increased operator safety
Standard Equipments: TCT Saw Blade, Offset Wrench, Guide Rule Any accessories shown are not necessarily supplied as standard equipment.
Information & Technologies
Material
Wood
MDF
Technical specifications
Blade Diameter | 185 mm (7-1/4") |
---|---|
Max cutting capacity | 0° : 65 mm (2-9/16") |
45° : 45 mm (1-3/4") | |
53° : 38 mm (1-1/2") | |
No Load Speed (RPM) | 6,400 |
Dimensions (L x W x H) | 446 x 196 x 270 mm |
Net weight | 5.0 - 5.6 kg (11.0 - 12.3 lbs.) |
XGT : Next Generation Technology | ✓ |
BL Motor | ✓ |
ADT | ✓ |
Electric brake | ✓ |
XPT | ✓ |
Brake | ✓ |
Soft Start | ✓ |
